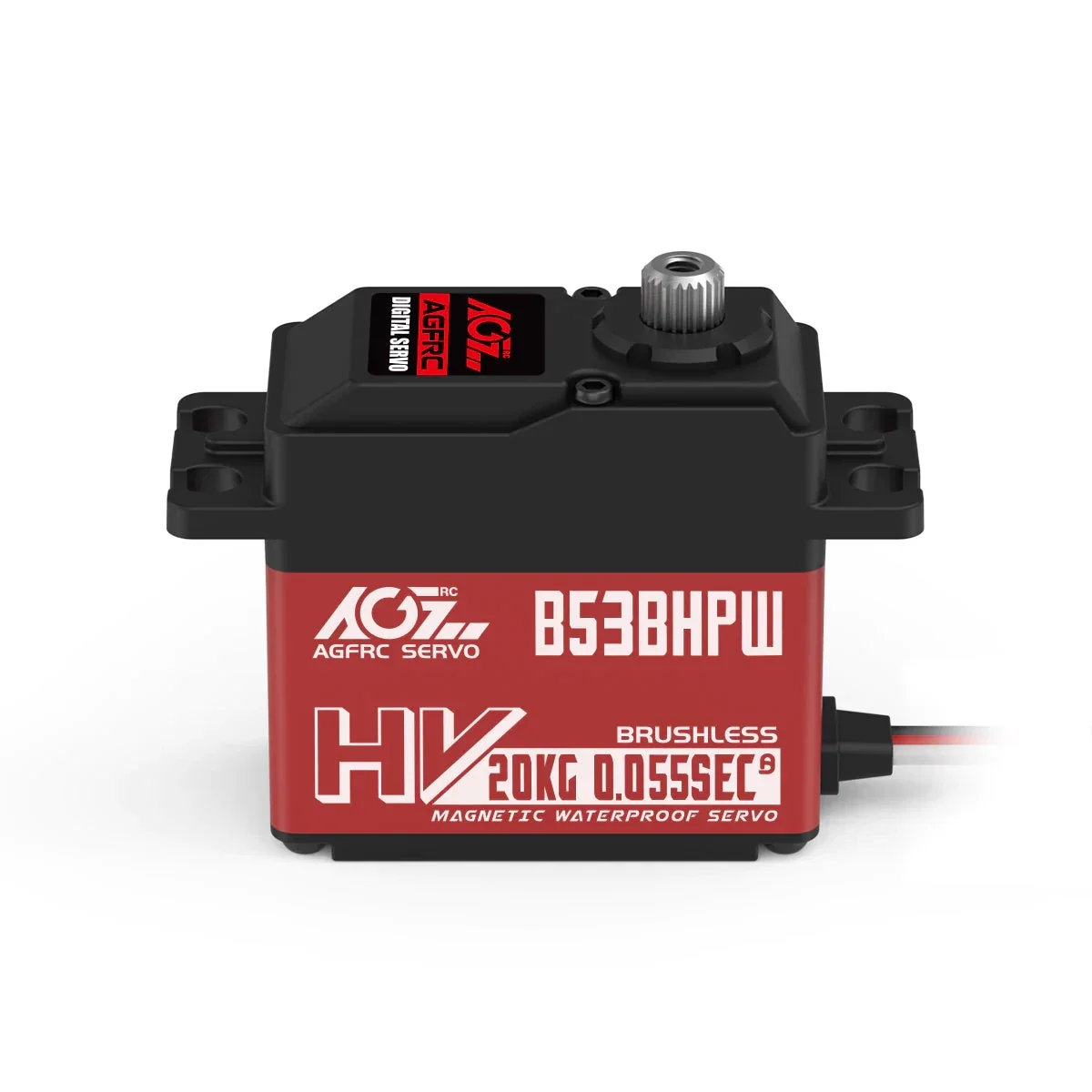

AGF-RC B53BHPW SERVO 0.055-60 DEG 20KG
£50.00
Application:
RC 1/10-1/8th On Road, Off Road, Truck, Buggy, Airplane, Helicopter
Product Description
AGFRC B53BHPW is upgraded to 20KG high torque and 0.055Sec speed. The appearance adopts the aluminium middle case design and the new laser engraving, and supports the programmable parameter function. And the magnetic sensor waterproof reaches IP67 grade, which can be used for harsh environments such as rainy days, muddy, sand dunes, snow, streams, and humidity. In addition, its internal structure has been completely upgraded from the motor to the gears. The steel gear is made of strong steel material and the shaft is reinforced to 2.0mm, which is stronger and more reliable.
Features
- High Performance Standard Digital Servo
- High Precision Steel Gear
- High Quality Brushless Motor
- High Strength Dual Ball Bearings
- Aluminium Middle Case
- High Accuracy Magnetic Sensor Waterproof IP67
- Available for Parameter Programmable
Specification
- B53BHPW
- Operating Voltage: 4.8-8.4V
- Operating speed: 0.075sec/60° @ 6.0V
- Operating speed: 0.065sec/60° @ 7.4V
- Operating speed: 0.055sec/60° @ 8.4V
- Stall Torque: 14.0 kg-cm (195 oz-in) @ 6.0V
- Stall Torque: 17.0 kg-cm (236 oz-in) @ 7.4V
- Stall Torque: 20.0 kg-cm (278 oz-in) @ 8.4V
- Gear: Steel
- Motor: BLS
- Size: 40*20*37.5mm (1.57 x 0.78 x 1.48 in)
- Weight: 70g
- Connector Wire: JR 360mm / 22AWG
