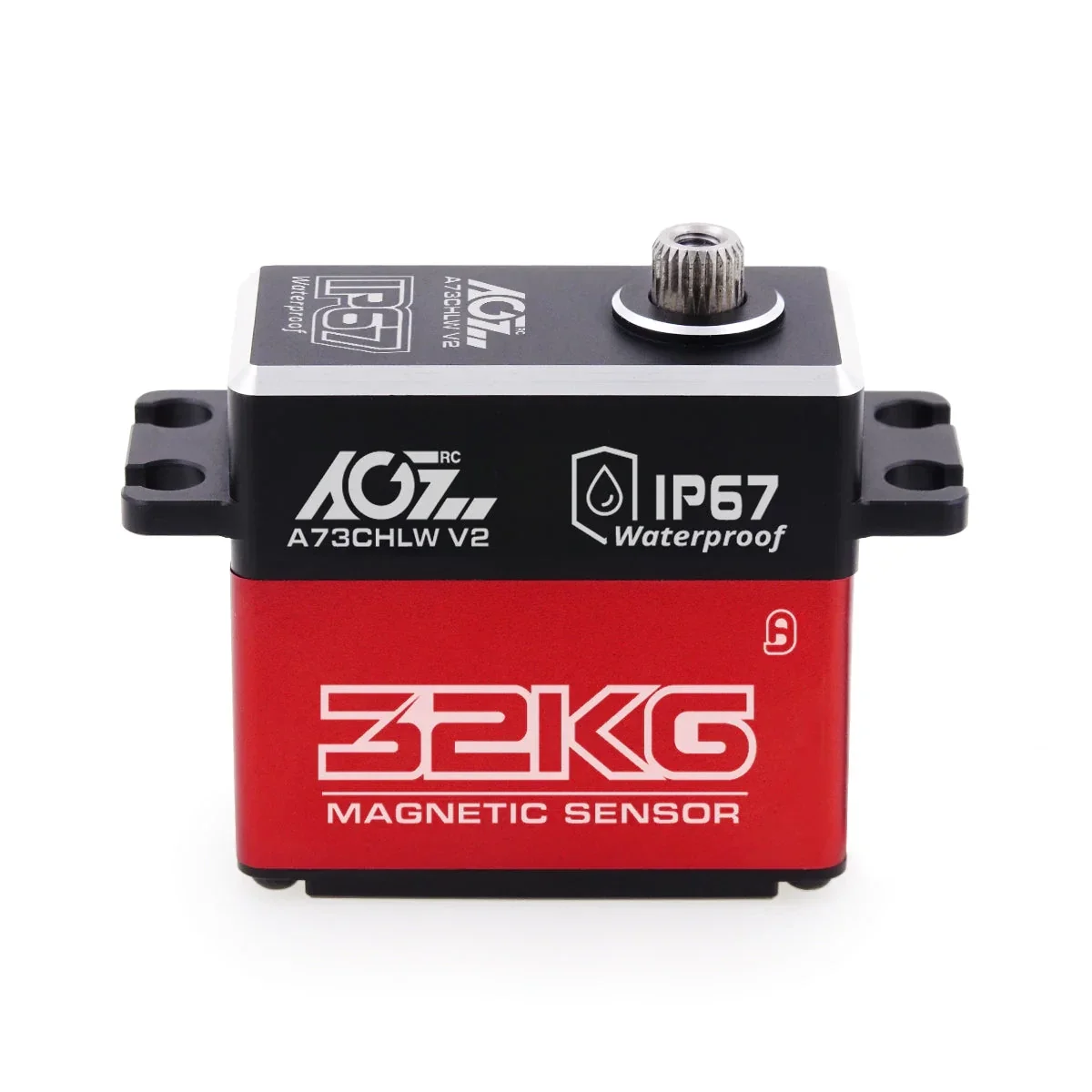

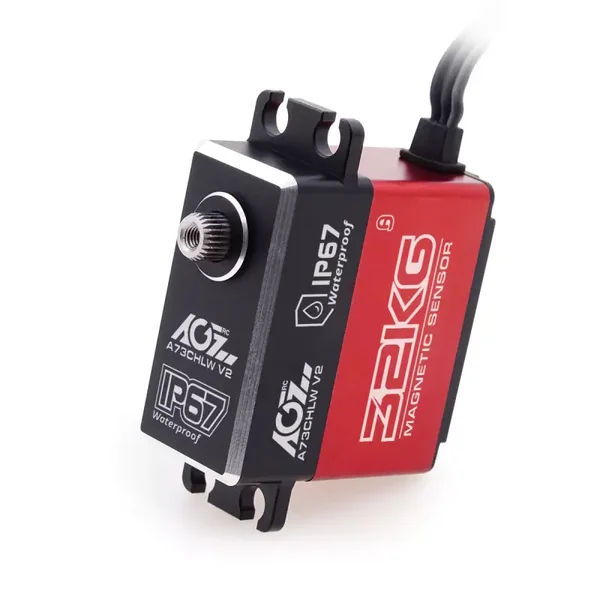

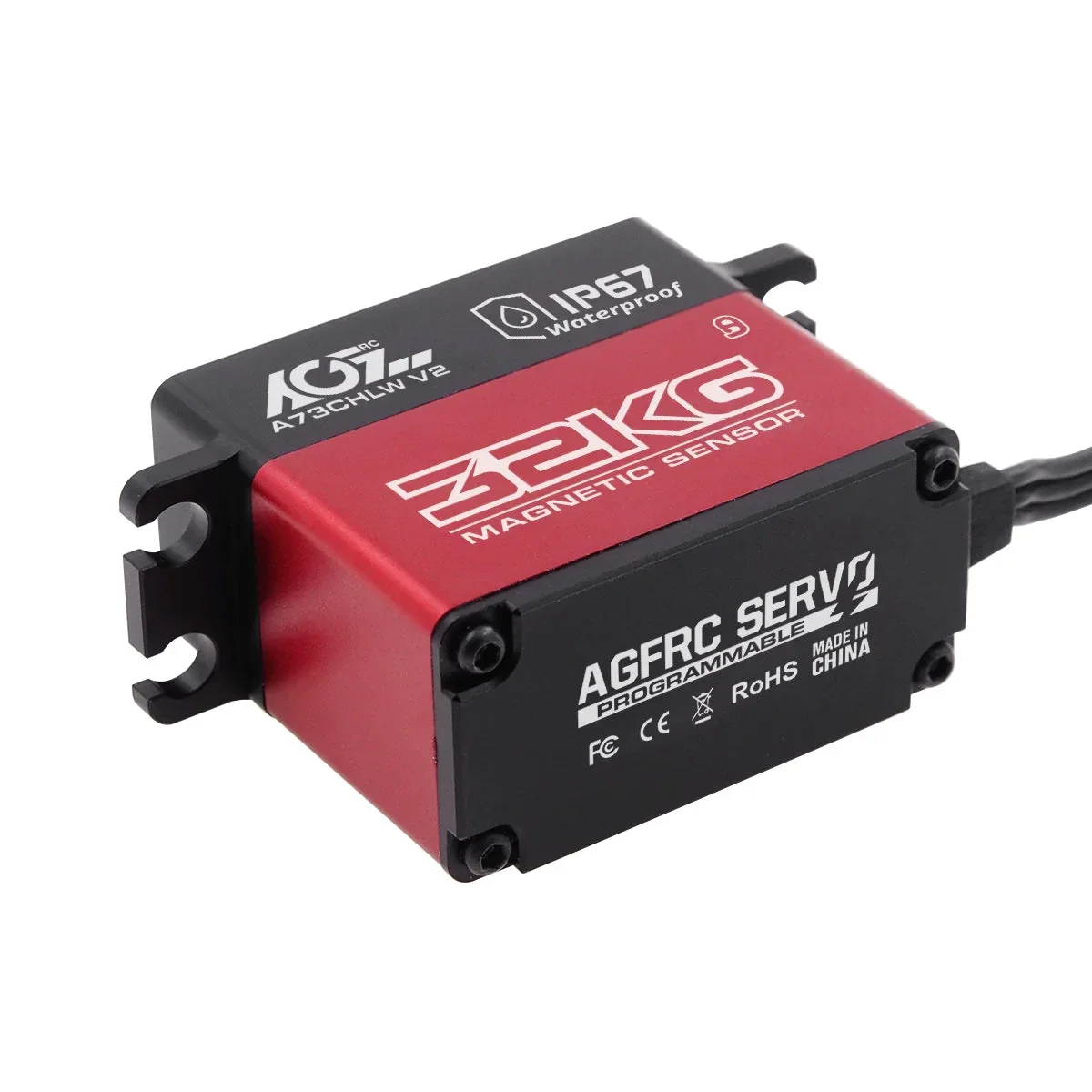

AGF-RC A73CHLW V2 32KG 0.135 HT WATERPROOF CL DIGITAL SERVO

Sold out
AGF-RC A73CHLW V2 32KG 0.135 HT WATERPROOF CL DIGITAL SERVO
£48.00

AGF-RC A73CHLW V2 32KG 0.135 HT Waterproof CL Digital Servo.


Affordable and practical programmable digital circuit IP67 waterproof standard servo A73CHLW V2 version is newly upgraded. It is suitable for a variety of harsh environments such as snow, rain, wet jungle, seaside, sand dunes, and mud, etc. And the depth of waterproof can reach within 1 meter, which enhances the experience and fun of fans. While retaining the advantages of the original 32KG high torque and high voltage 8.4V, the V2 version has improved the following performance:



* Motor----Enhanced high-efficiency and long-life coreless motor, upgraded to the same powerful motor as A81 series coreless motor servo.

* Gear----High-precision and strong reinforced steel gears are used to effectively protect the internal structure of the servo.

* Gear Shaft----The gear shaft is thickened and strengthened to 2.0mm, which can resist the impact when the model is running, and the anti-collision performance is improved.



With these supports, the servos run more reliably and smoothly. In addition, The price of the V2 version is still very affordable, it can not only meet the requirements and applications of most enthusiasts, but also a budget servo with high cost performance.



Features

  • High Performance Standard Size Digital Servo
  • High Precision Magnetic Angular Position Sensor
  • Fully Waterproof Up To IP67 Grade
  • Reinforced Steel Gear And Pin Shaft
  • High Efficiency Coreless Motor
  • High Strength Dual Ball Bearings
  • Fast Cooling Aluminium Case
  • Ideal for 1/10 Rock Crawlers, Monster Trucks, Airplane, Helicopter and Engine etc.




Specification

  • A73CHLW V2
  • Operating Voltage: 4.8-8.4V
  • Operating speed: 0.160sec/60° @ 6.0V
  • Operating speed: 0.145sec/60° @ 7.4V
  • Operating speed: 0.135sec/60° @ 8.4V
  • Stall Torque: 26 kg-cm (361.07oz-in) @ 6.0V
  • Stall Torque: 29 kg-cm (402.73 oz-in) @ 7.4V
  • Stall Torque: 32 kg-cm (444.40 oz-in) @ 8.4V
  • Gear: Steel
  • Motor: Coreless
  • Size: 40*20*37.5mm (1.57 x 0.78 x 1.47 in)
  • Weight: 73.5g
  • Connector Wire: JR 300mm /22AWG
